Examples

Setting up restic with Amazon S3

Preface

This tutorial will show you how to use restic with Amazon S3. It will show you how to navigate the AWS web interface, create an S3 bucket, create a user with access to only this bucket, and finally how to connect restic to this bucket.

Prerequisites

You should already have a restic binary available on your system that you can run. Furthermore, you should also have an account with AWS. You will likely need to provide credit card details for billing purposes, even if you use their free-tier.

Logging into AWS

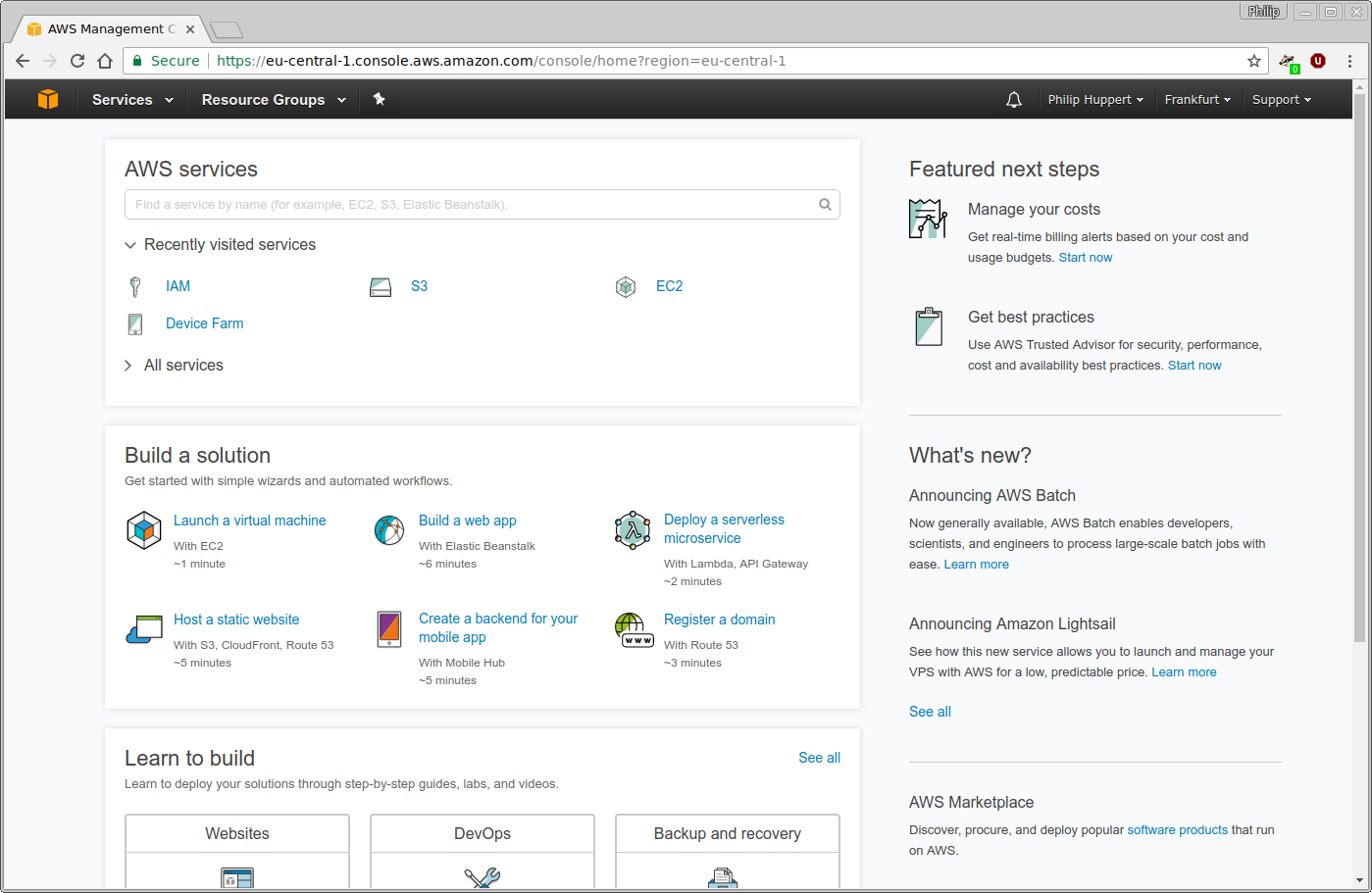

Point your browser to https://console.aws.amazon.com and log in using your AWS account. You will be presented with the AWS homepage:

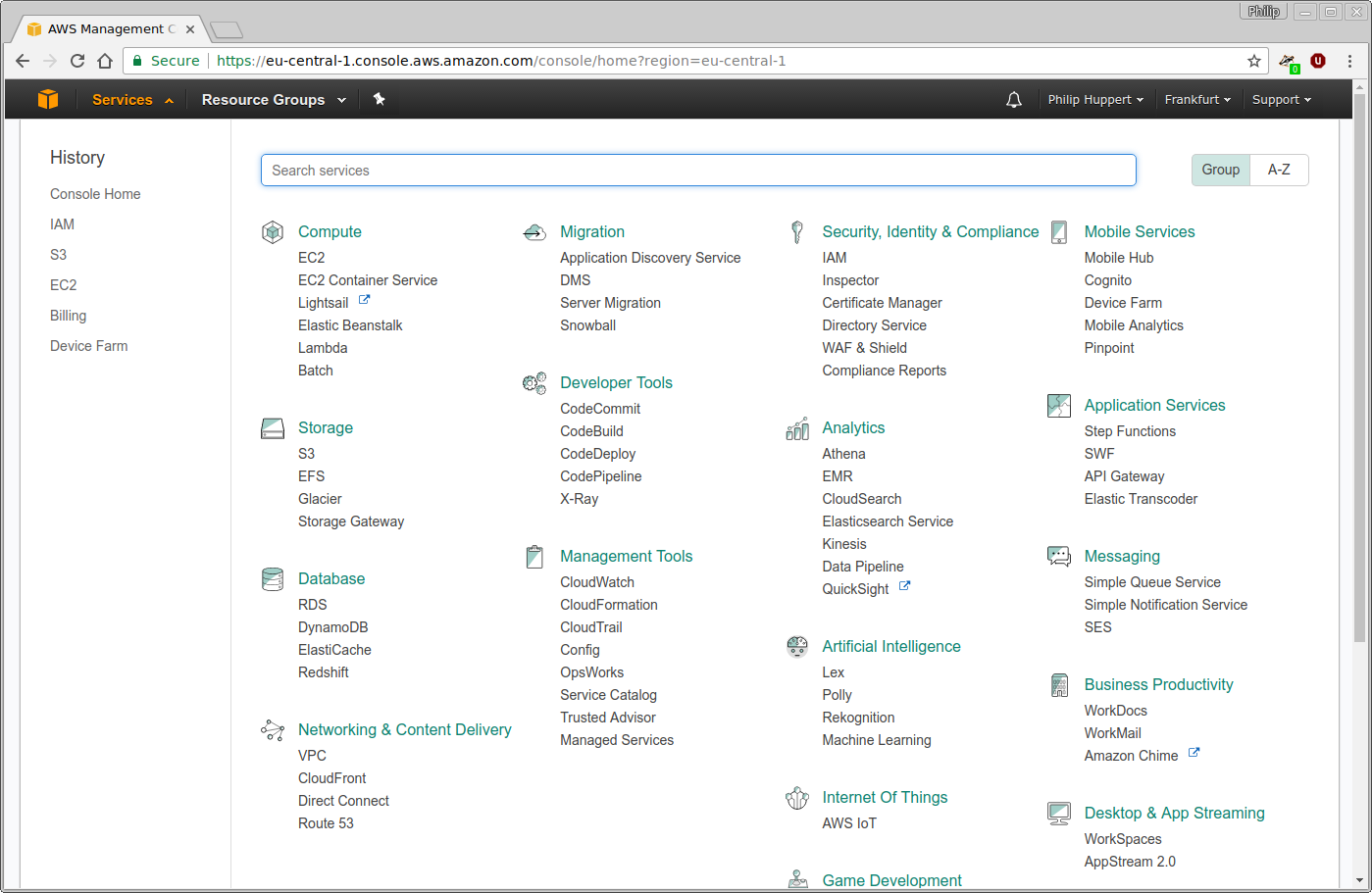

By using the “Services” button in the upper left corner, a menu of all services provided by AWS can be opened:

For this tutorial, the Simple Storage Service (S3), as well as Identity and Access Management (IAM) are relevant.

Creating the bucket

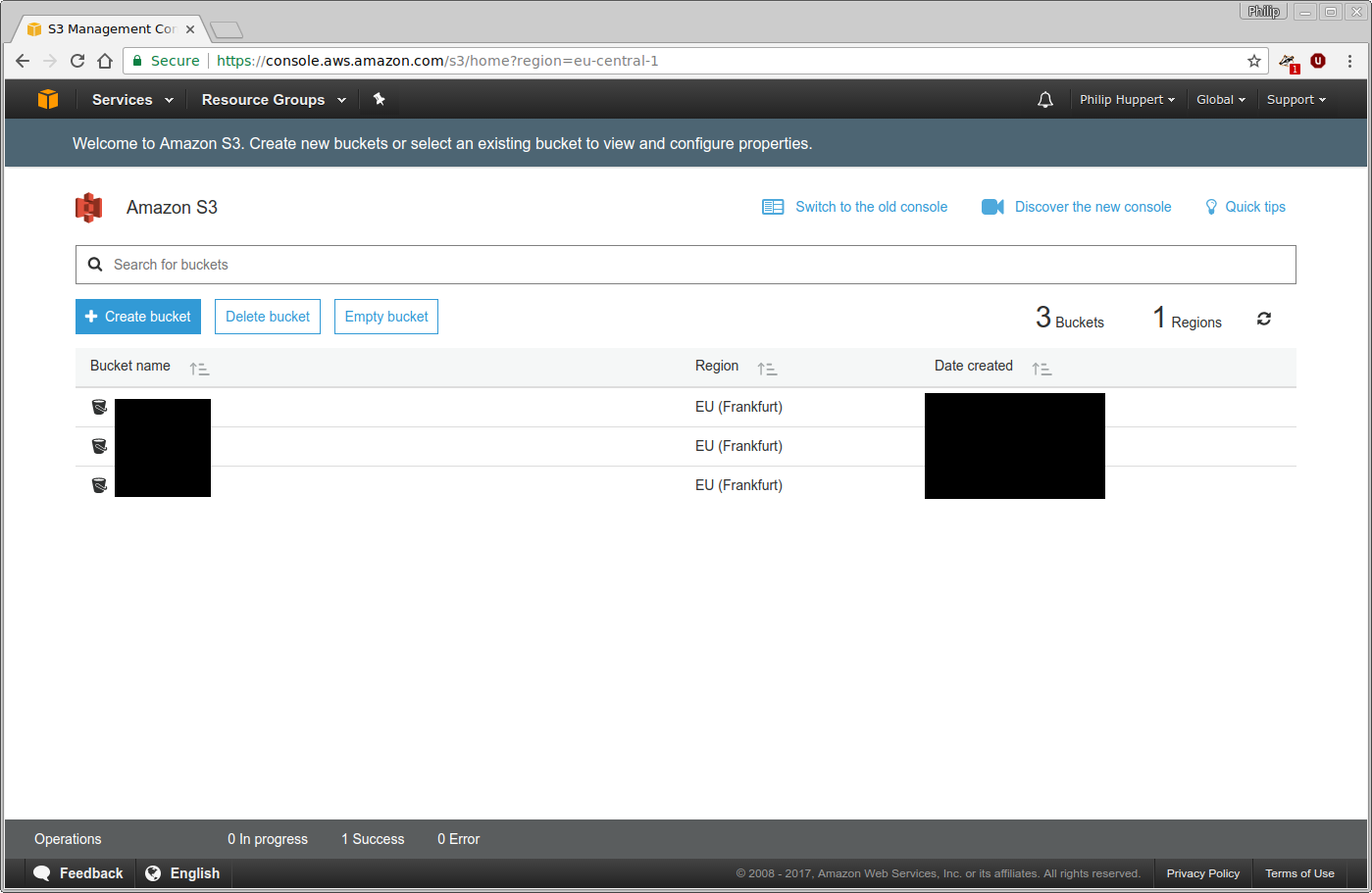

First, a bucket to store your backups in must be created. Using the “Services” menu, navigate to S3. In case you already have some S3 buckets, you will see a list of them here:

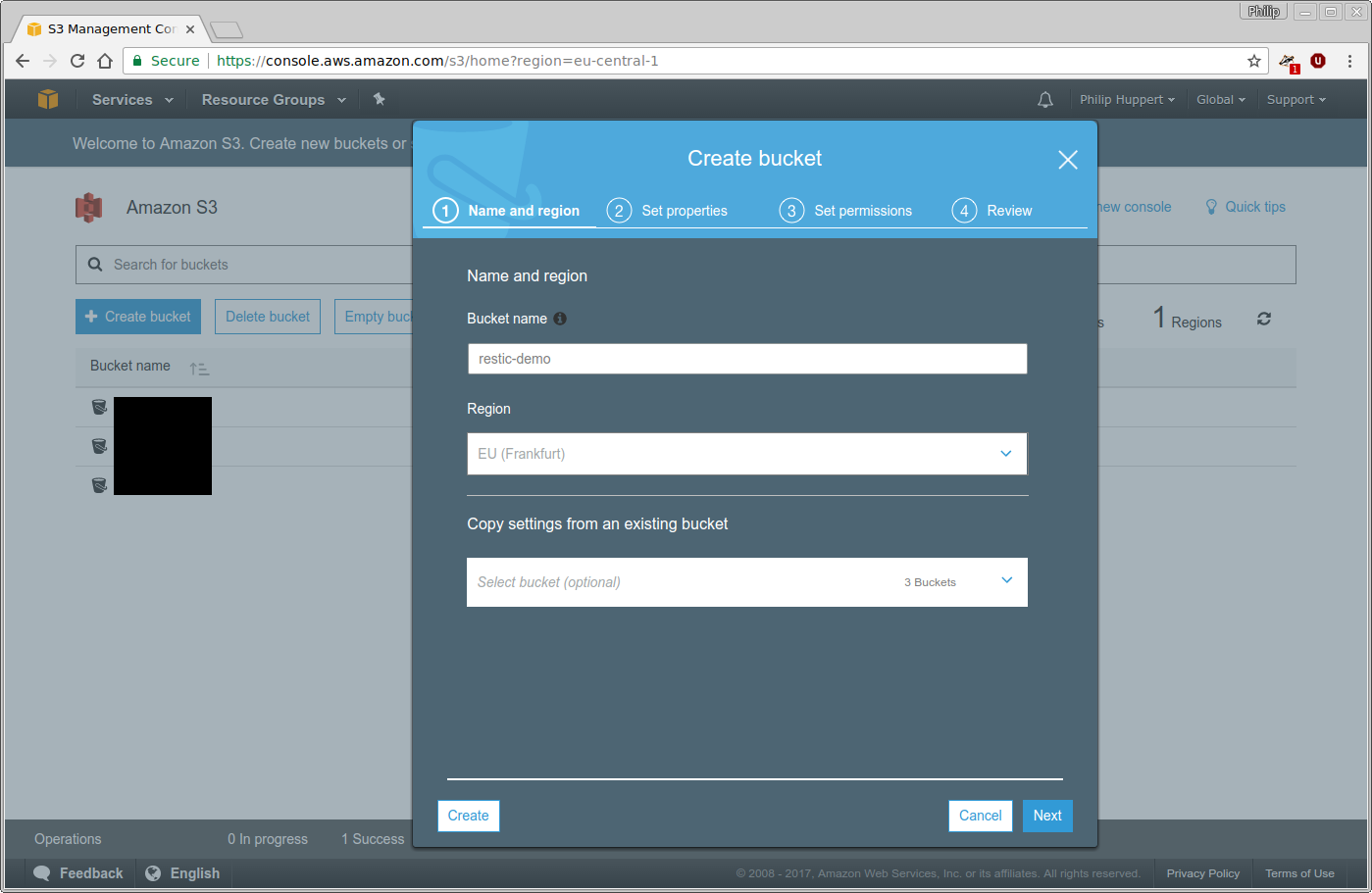

Click the “Create bucket” button and choose a name and region for your new bucket. For the purpose of this tutorial, the bucket will be named restic-demo and reside in Frankfurt. Because the bucket name space is shared among all AWS users, the name restic-demo may not be available to you. Be creative and choose a unique bucket name.

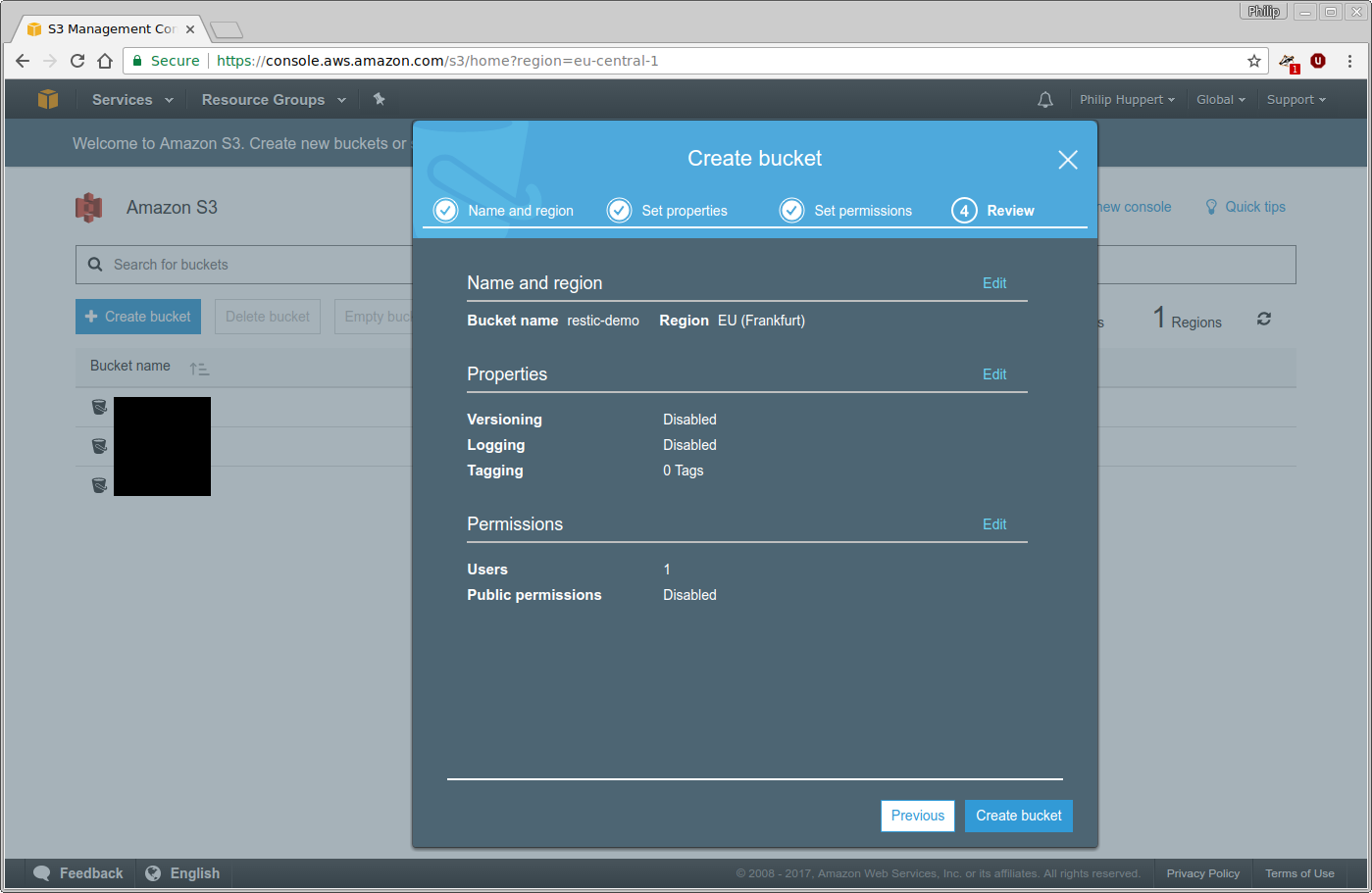

It is not necessary to configure any special properties or permissions of the bucket just yet. Therefore, just finish the wizard without making any further changes:

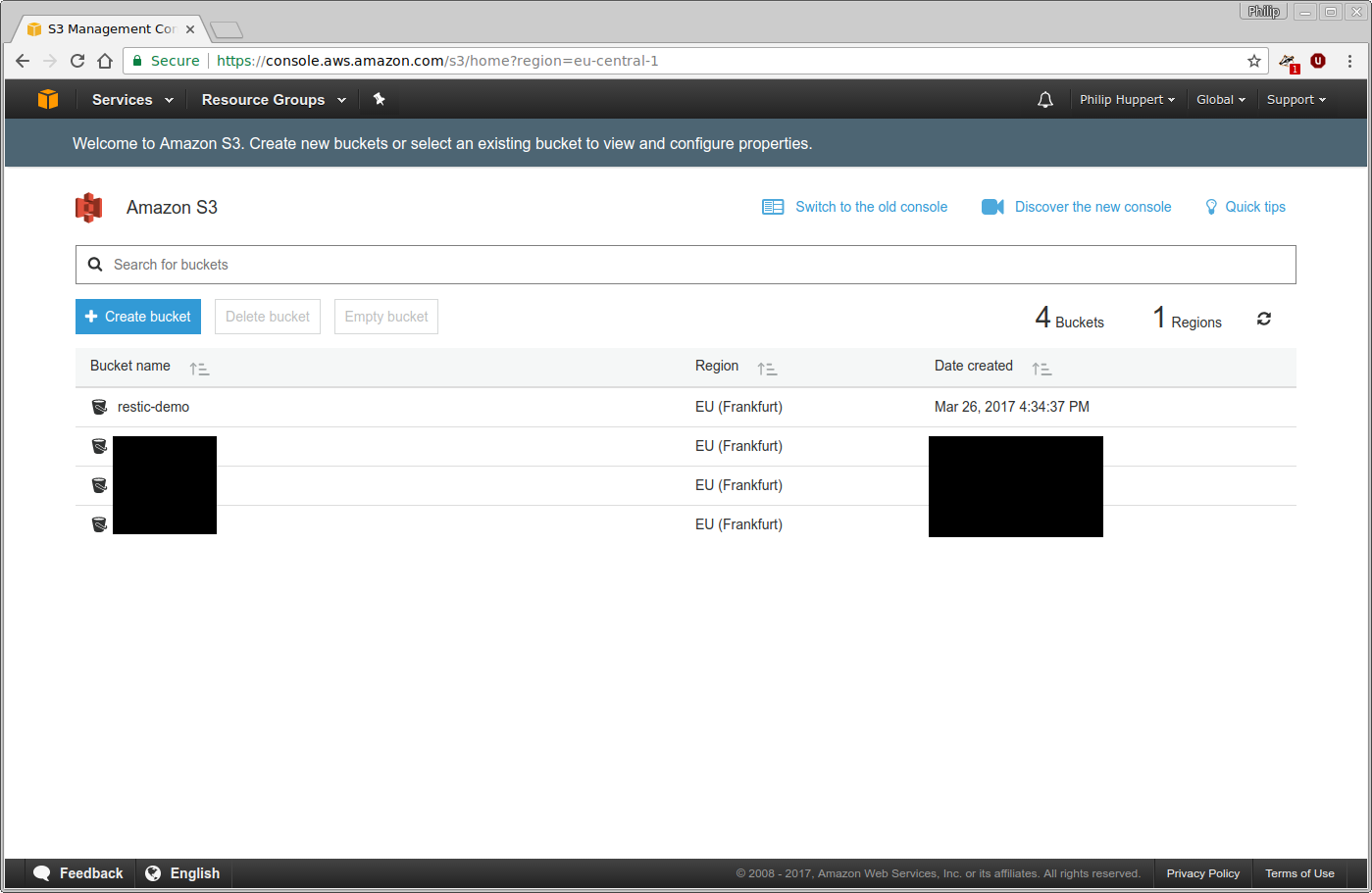

The newly created restic-demo bucket will now appear on the list of S3 buckets:

Creating a user

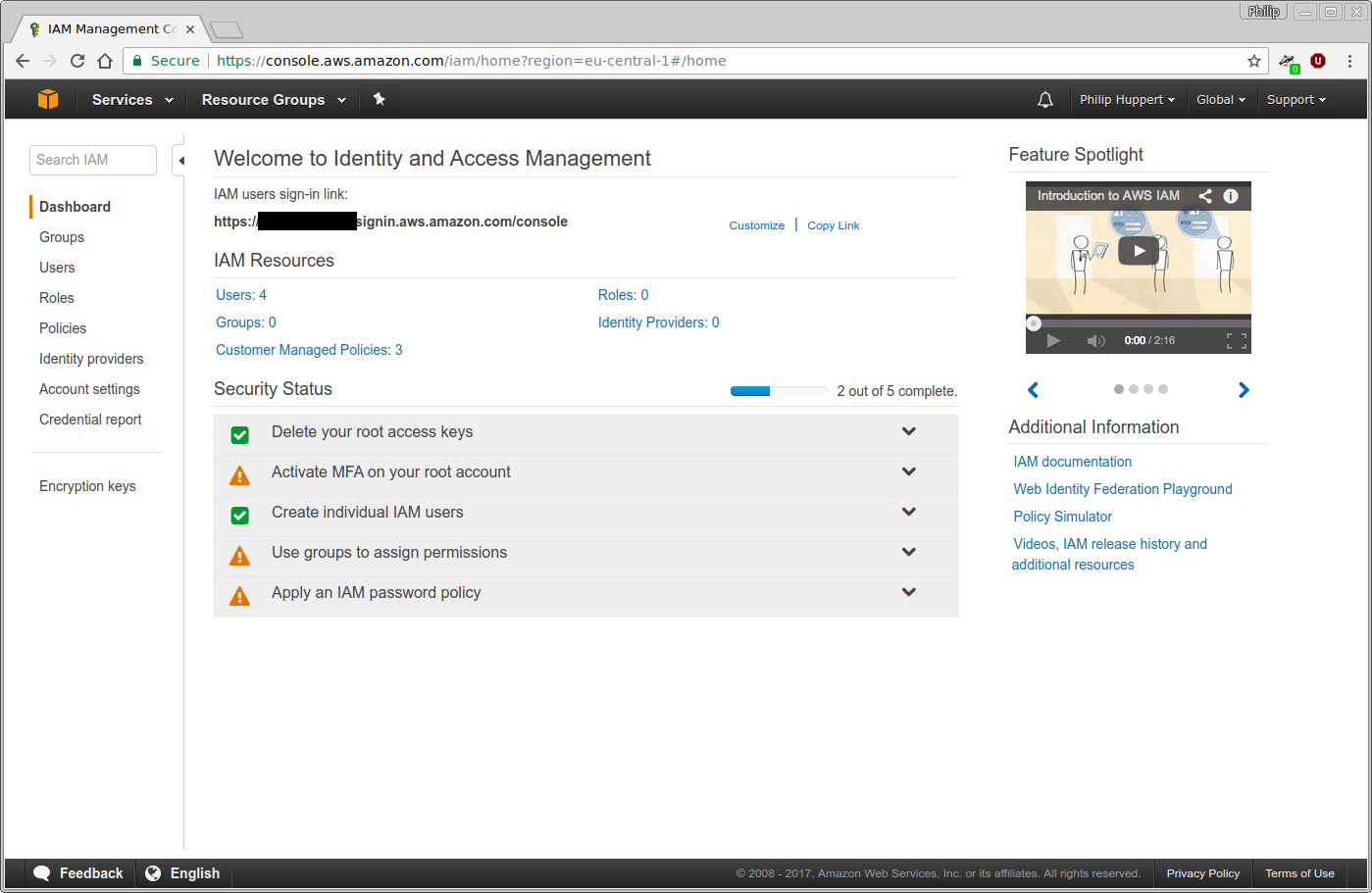

Use the “Services” menu of the AWS web interface to navigate to IAM. This will bring you to the IAM homepage. To create a new user, click on the “Users” menu entry on the left:

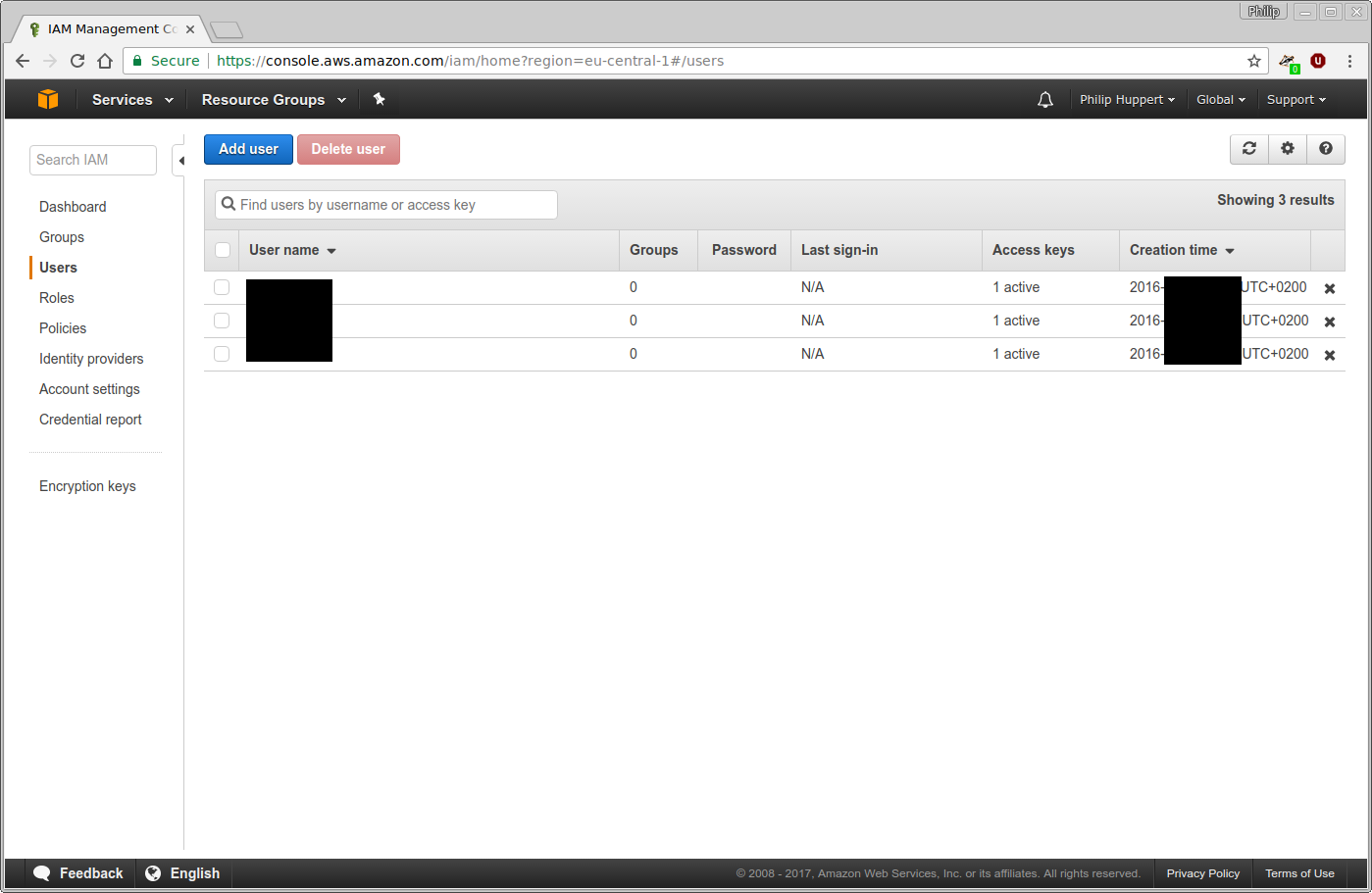

In case you already have set-up users with IAM before, you will see a list of them here. Use the “Add user” button at the top to create a new user:

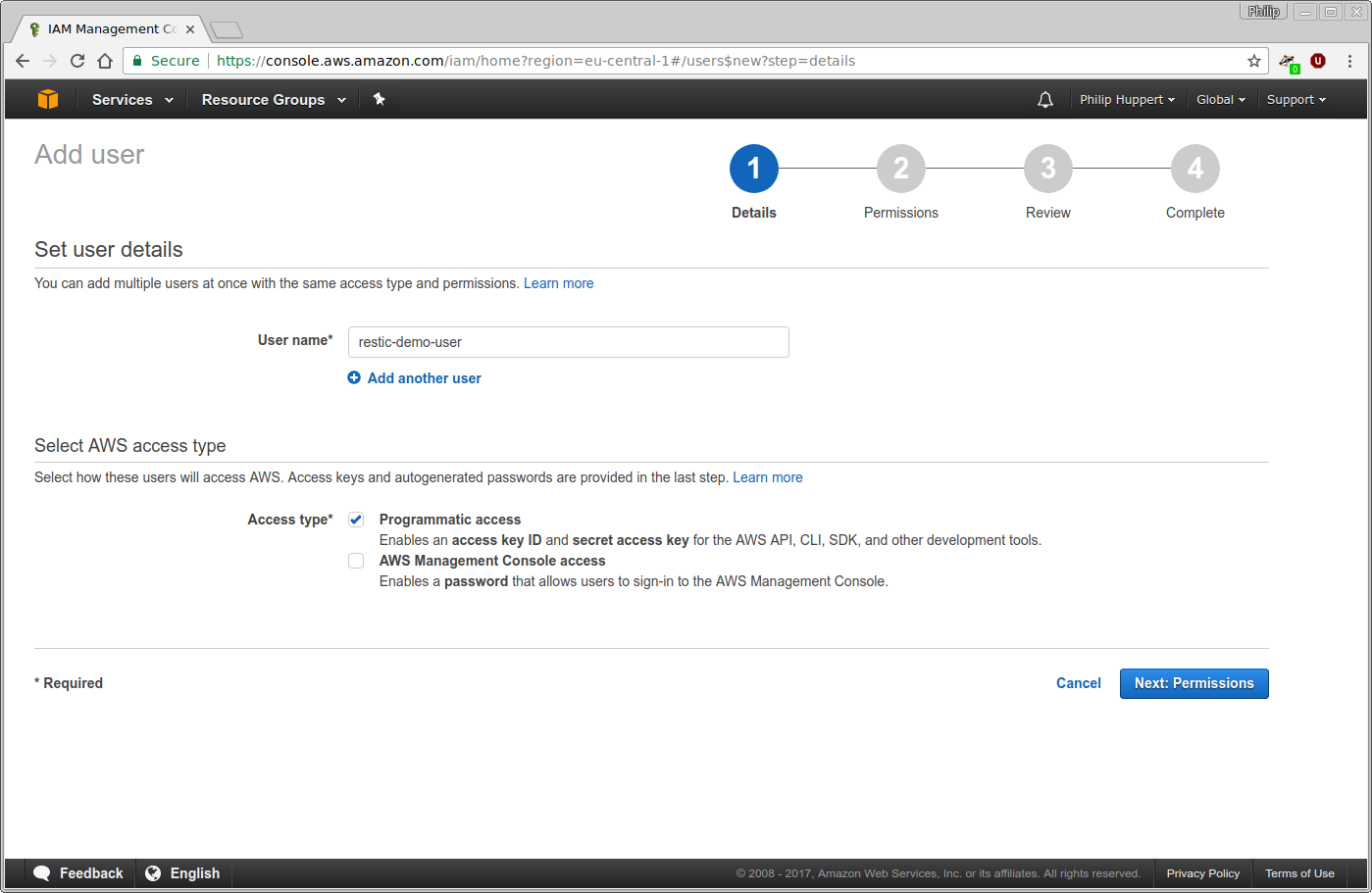

For this tutorial, the new user will be named restic-demo-user. Feel free to choose your own name that best fits your needs. This user will only ever access AWS through the restic program and not through the web interface. Therefore, “Programmatic access” is selected for “Access type”:

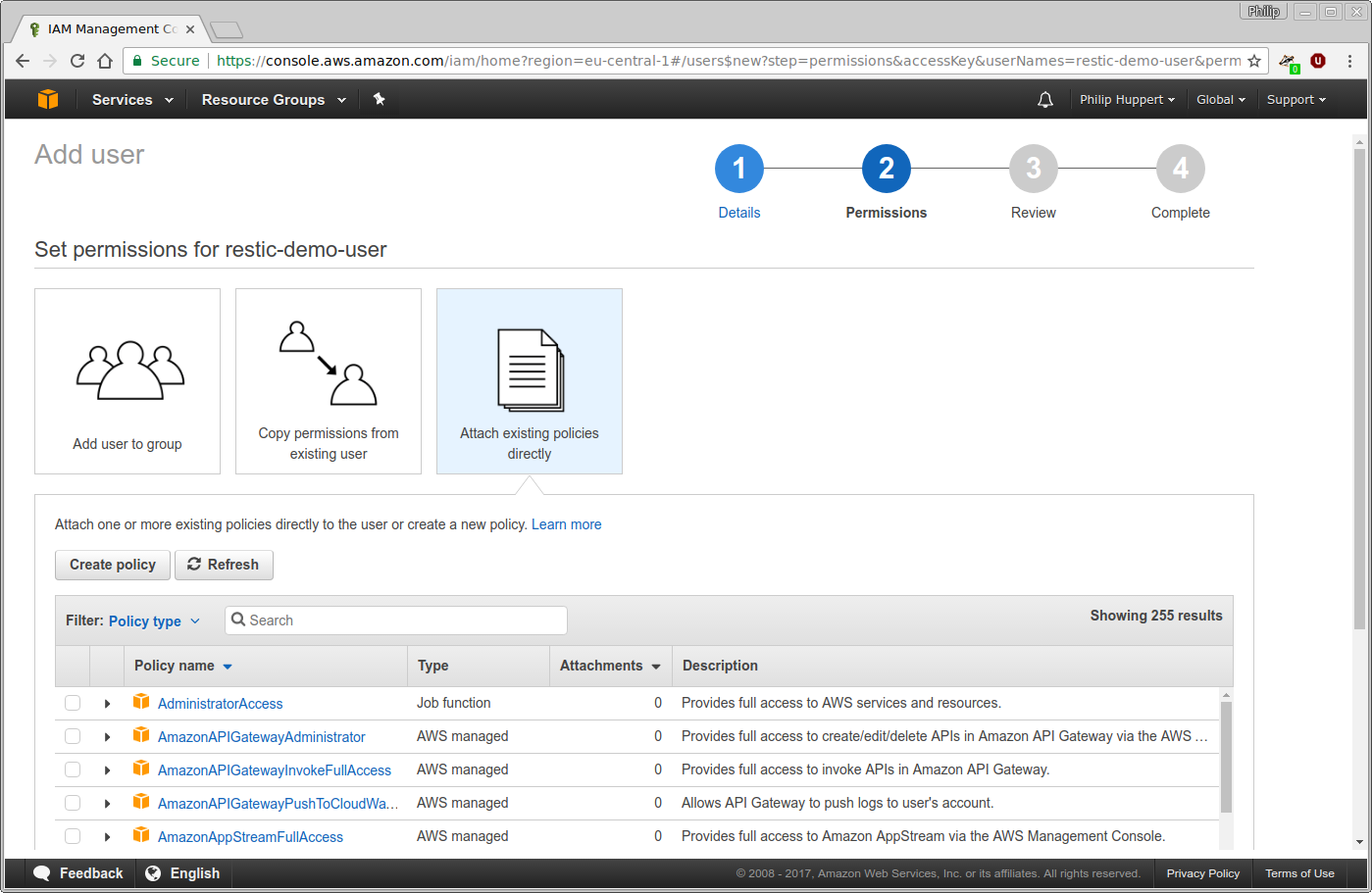

During the next step, permissions can be assigned to the new user. To use this user with restic, it only needs access to the restic-demo bucket. Select “Attach existing policies directly”, which will bring up a list of pre-defined policies below. Afterwards, click the “Create policy” button to create a custom policy:

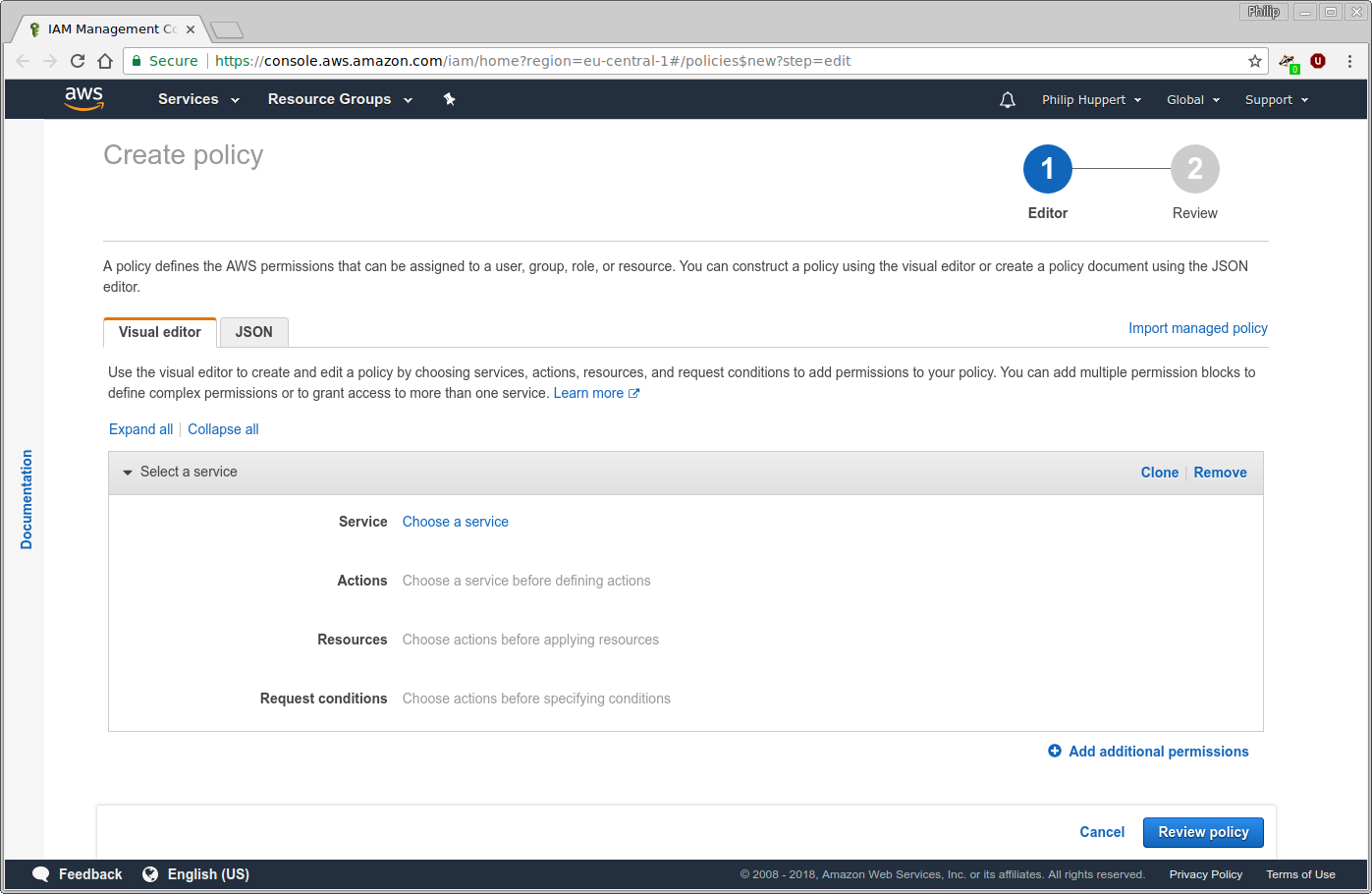

A new browser window or tab will open with the policy wizard. In Amazon IAM, policies are defined as JSON documents. For this tutorial, the “Visual editor” will be used to generate a policy:

For restic to work, two permission statements must be created using the visual policy editor. The first statement is set up as follows:

Service: S3
Allow Actions: DeleteObject, GetObject, PutObject
Resources: arn:aws:s3:::restic-demo/*

This statement allows restic to create, read and delete objects inside the S3 bucket named restic-demo. Adjust the bucket’s name to the name of the bucket you created earlier. Next, add a second statement using the “Add additional permissions” button:

Service: S3
Allow Actions: ListBucket, GetBucketLocation
Resource: arn:aws:s3:::restic-demo

Again, substitute restic-demo with the actual name of your bucket. Note that, unlike before, there is no /* after the bucket name. This statement allows restic to list the objects stored in the restic-demo bucket and to query the bucket’s region.

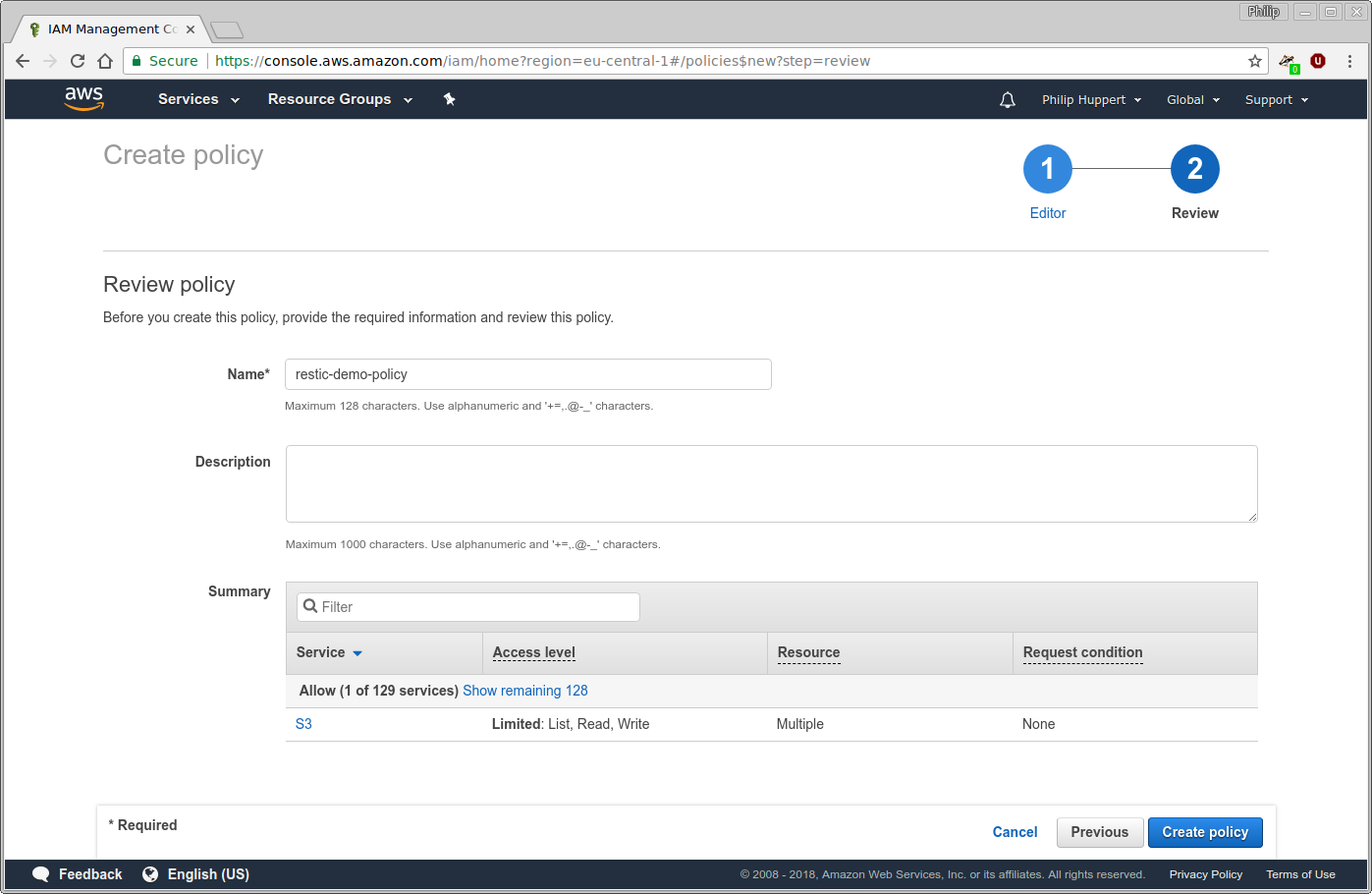

Continue to the next step by clicking the “Review policy” button and enter a name and description for this policy. For this tutorial, the policy will be named restic-demo-policy. Click “Create policy” to finish the process:

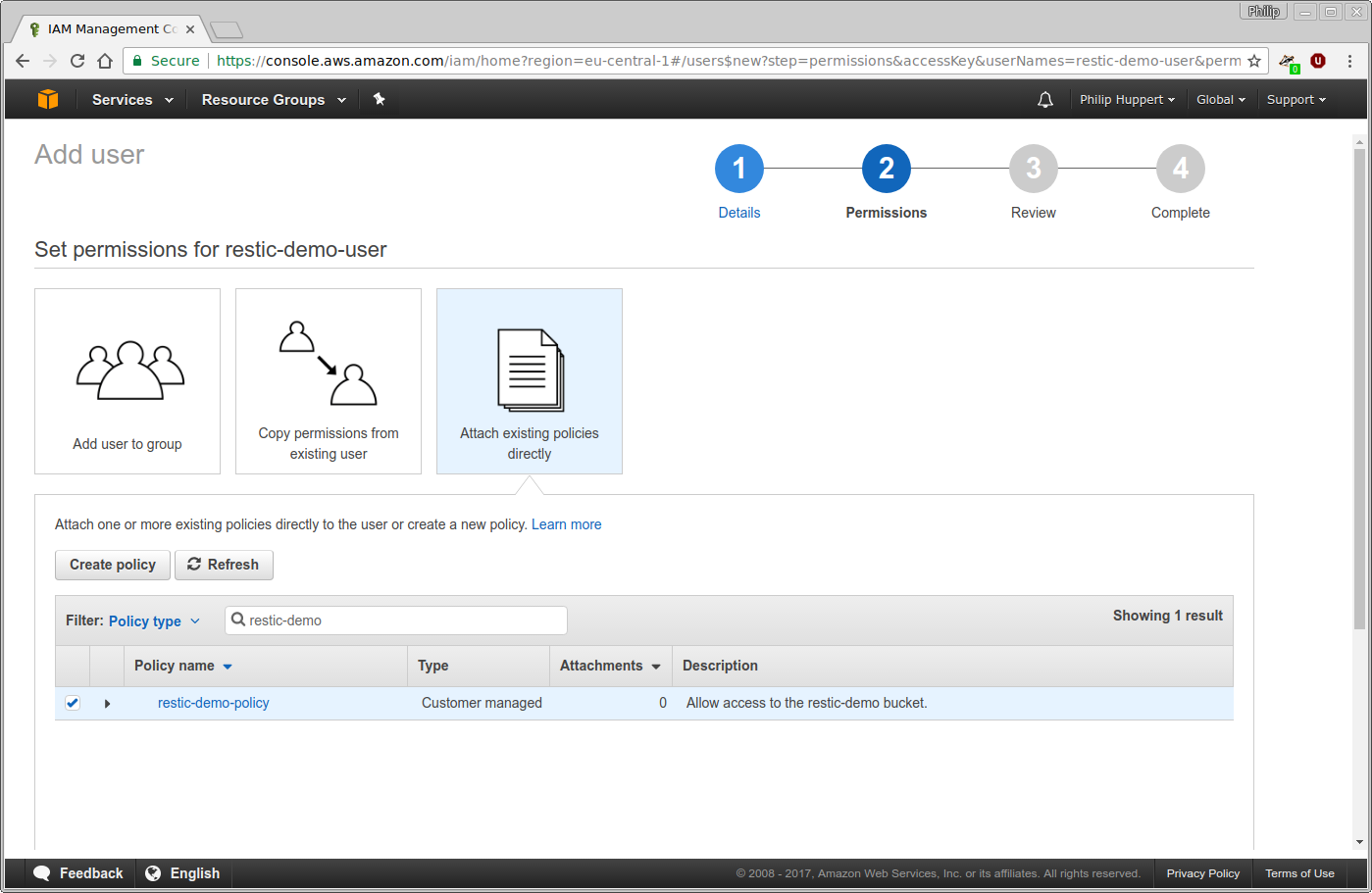

Go back to the browser window or tab where you were previously creating the new user. Click the button labeled “Refresh” above the list of policies to make sure the newly created policy is available to you. Afterwards, use the search function to search for the restic-demo-policy. Select this policy using the checkbox on the left. Then, continue to the next step.

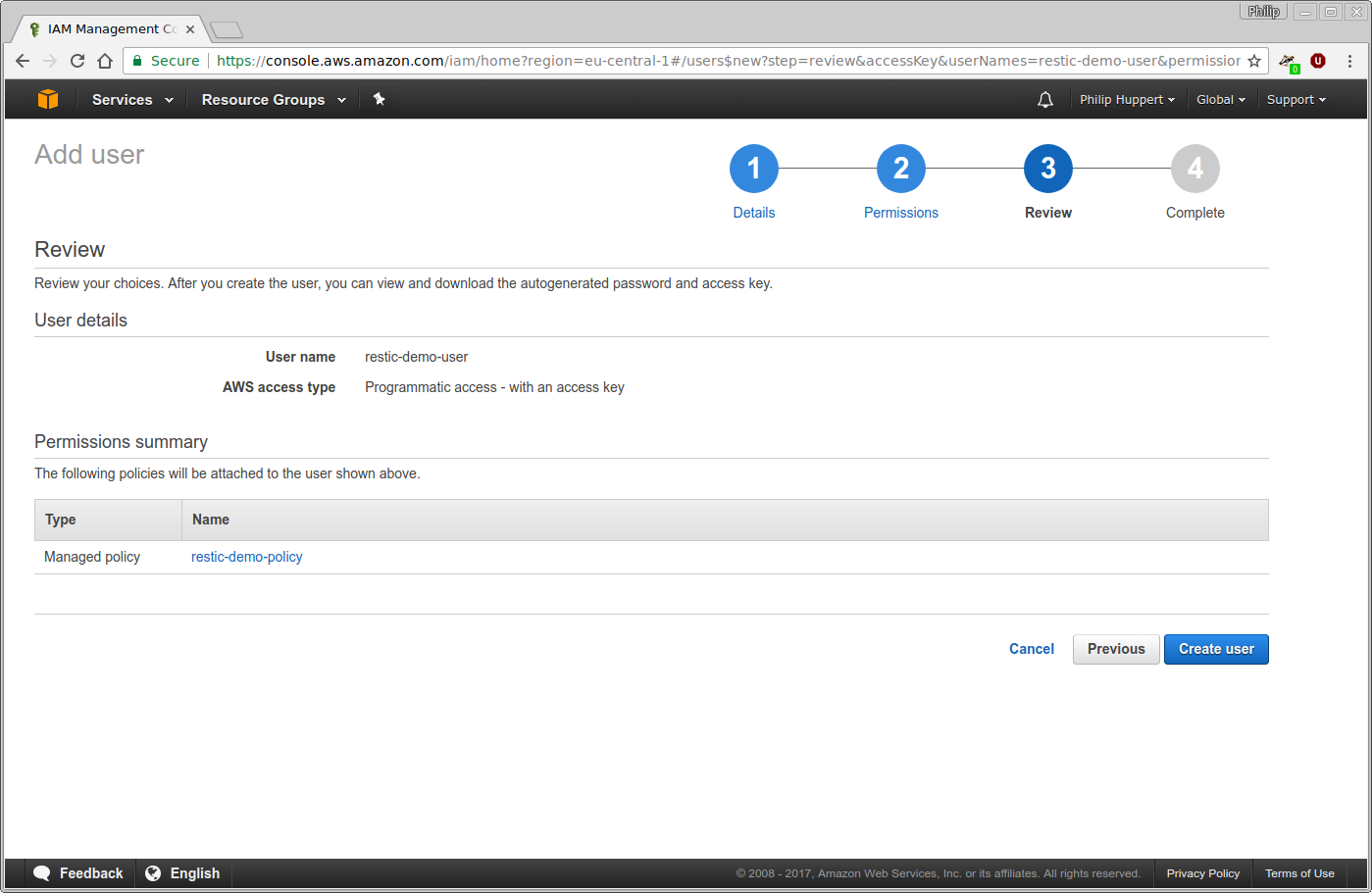

The next page will present an overview of the user account that is about to be created. If everything looks good, click “Create user” to complete the process:

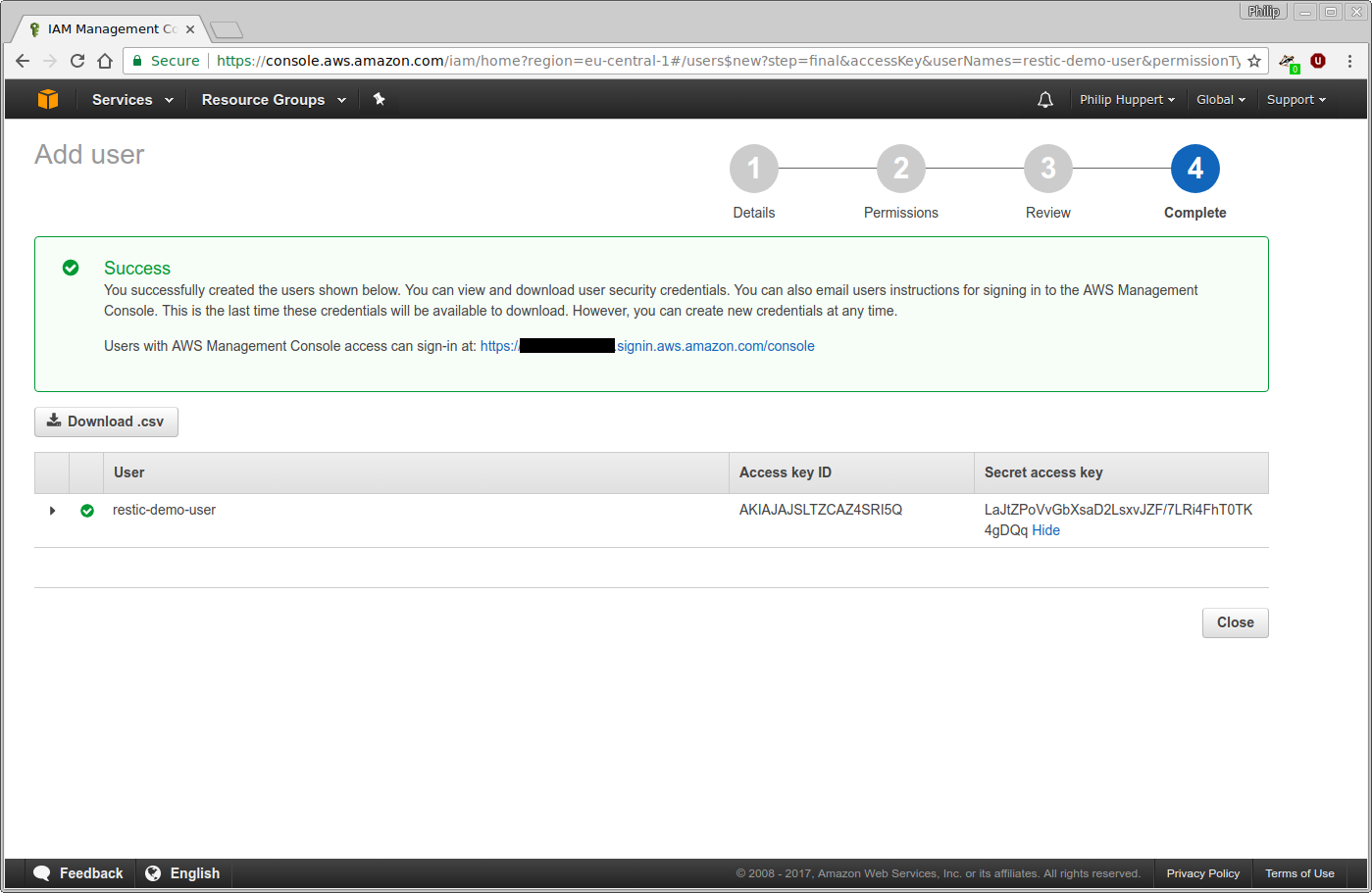

After the user has been created, its access credentials will be displayed. They consist of the “Access key ID” (think user name), and the “Secret access key” (think password). Copy these down to a safe place.

You have now completed the configuration in AWS. Feel free to close your web browser now.

Initializing the restic repository

Open a terminal and make sure you have the restic binary ready. First, choose a password to encrypt your backups with. In this tutorial, apg is used for this purpose:

$ apg -a 1 -m 32 -n 1 -M NCL
I9n7G7G0ZpDWA3GOcJbIuwQCGvGUBkU5

Note this password somewhere safe along with your AWS credentials. Next, the configuration of restic will be placed into environment variables. This will include sensitive information, such as your AWS secret and repository password. Therefore, make sure the next commands do not end up in your shell’s history file. Adjust the contents of the environment variables to fit your bucket’s name, region, and your user’s API credentials.

$ unset HISTFILE
$ export RESTIC_REPOSITORY="s3:s3.eu-west-1.amazonaws.com/restic-demo"
$ export AWS_ACCESS_KEY_ID="AKIAJAJSLTZCAZ4SRI5Q"
$ export AWS_SECRET_ACCESS_KEY="LaJtZPoVvGbXsaD2LsxvJZF/7LRi4FhT0TK4gDQq"
$ export RESTIC_PASSWORD="I9n7G7G0ZpDWA3GOcJbIuwQCGvGUBkU5"

After the environment is set up, restic may be called to initialize the repository:

$ restic init
created restic backend b5c661a86a at s3:s3.eu-west-1.amazonaws.com/restic-demo

Please note that knowledge of your password is required to access
the repository. Losing your password means that your data is
irrecoverably lost.

restic is now ready to be used with Amazon S3. Try to create a backup:

$ dd if=/dev/urandom bs=1M count=10 of=test.bin
10+0 records in
10+0 records out
10485760 bytes (10 MB, 10 MiB) copied, 0,0891322 s, 118 MB/s

$ restic backup test.bin
scan [/home/philip/restic-demo/test.bin]
scanned 0 directories, 1 files in 0:00
[0:04] 100.00%  2.500 MiB/s  10.000 MiB / 10.000 MiB  1 / 1 items ... ETA 0:00
duration: 0:04, 2.47MiB/s
snapshot 10fdbace saved

$ restic snapshots
ID        Date                 Host        Tags        Directory
----------------------------------------------------------------------
10fdbace  2017-03-26 16:41:50  blackbox                /home/philip/restic-demo/test.bin

A snapshot was created and stored in the S3 bucket. By default backups to Amazon S3 will use the STANDARD storage class. Available storage classes include STANDARD, STANDARD_IA, ONEZONE_IA, INTELLIGENT_TIERING, and REDUCED_REDUNDANCY. A different storage class could have been specified in the above command by using -o or --option:

$ restic backup -o s3.storage-class=REDUCED_REDUNDANCY test.bin

This snapshot may now be restored:

$ mkdir restore

$ restic restore 10fdbace --target restore
restoring <Snapshot 10fdbace of [/home/philip/restic-demo/test.bin] at 2017-03-26 16:41:50.201418102 +0200 CEST by philip@blackbox> to restore

$ ls restore/
test.bin

The snapshot was successfully restored. This concludes the tutorial.

Backing up your system without running restic as root

Motivation

Creating a complete backup of a machine requires a privileged process that is able to read all files. On UNIX-like systems this is traditionally the root user. Processes running as root have superpower. They can not only read all files but also have the power to modify the system in any possible way.

With great power comes great responsibility. If a process running as root malfunctions, is exploited, or simply configured in a wrong way it can cause any possible damage to the system. This means you only want to run programs as root that you trust completely. And even if you trust a program, it is good and common practice to run it with the least possible privileges.

Fortunately, Linux has functionality to divide root’s power into single separate capabilities. The CAP_DAC_READ_SEARCH capability allows the current process to “Bypass file read permission checks and directory read and execute permission checks”, which is what you need to back up a system.

Using ambient capabilities (recommended)

First, create a new user called restic that is going to create the backups:

# useradd --system --create-home --shell /sbin/nologin restic

The capability can be granted to a process tree using the setpriv command, which must be run as root user and then switches to the restic user:

# setpriv --no-new-privs --reuid=$(id -u restic) --regid=$(id -g restic) --init-groups --reset-env --inh-caps +DAC_READ_SEARCH --ambient-caps +DAC_READ_SEARCH restic backup --exclude={/dev,/media,/mnt,/proc,/run,/sys,/tmp,/var/tmp} /

Using ambient capabilities with systemd

If you are running restic as a systemd service, you can use systemd’s ambient capability feature to assign the necessary capability without modifying the restic binary itself. This is the preferred method, as it still works after binary updates.

Add the following directives to the [Service] section of your systemd unit file (e.g., /etc/systemd/system/restic.service):

[Service]
# ... other directives
DynamicUser=yes
AmbientCapabilities=CAP_DAC_READ_SEARCH
CapabilityBoundingSet=CAP_DAC_READ_SEARCH

Note the use of DynamicUser=yes. This is an added bonus of using the systemd method as you do not need to create a restic user.

After editing the unit file, do not forget to reload systemd’s configuration and restart the service:

# systemctl daemon-reload

Using file capabilities

Warning

Granting CAP_DAC_READ_SEARCH to the restic binary allows any process executing that binary to bypass standard file permission checks for reading and directory traversal. In practice, anyone who can execute this binary can read most of the system, regardless of their user ID.

Ensure that only a dedicated backup user (and root) can execute the capability-enabled restic binary, and treat that account as highly privileged.

See: capabilities(7)

Alternatively, the capability can be granted to a file. On every execution, the system will read the assigned capabilities and assign them to the process. This is less secure than using ambient capabilities as anyone who is able to execute the binary can make use of the capability.

First, create a new user called restic that is going to create the backups:

# useradd --system --create-home --shell /sbin/nologin restic

Then copy the restic binary into the user’s home directory:

# mkdir /home/restic/bin
# cp /usr/bin/restic /home/restic/bin/restic

Before assigning any special capability to the restic binary, restrict its permissions so that only root and the newly created restic user can execute it. Otherwise any user could use the privileged restic binary to access any file.

# chown root:restic /home/restic/bin/restic
# chmod 750 /home/restic/bin/restic

Finally, use setcap to add an extended attribute to the restic binary. On every execution the system will read the extended attribute, interpret it and assign capabilities accordingly.

# setcap cap_dac_read_search=+ep /home/restic/bin/restic

Important

The capabilities of the setcap command only apply to this specific copy of the restic binary. If you run restic self-update or in any other way replace or update the binary, the capabilities you added will be lost, and you must run the setcap command again.

From now on the user restic can run restic to backup the whole system.

# runuser -u restic /home/restic/bin/restic -r /tmp backup --exclude={/dev,/media,/mnt,/proc,/run,/sys,/tmp,/var/tmp} /

Back up to an internal repository server over an SSH tunnel

Idea

The idea is to run REST-server on an internal host as the repository server and then back up to it from a remote restic client through a reverse SSH tunnel.

With this approach, you do not need to publicly expose the repository server to which the backups are sent, as the restic client can instead connect to it through the SSH tunnel.

An example use case for this method would be to create backups of a server, e.g. a VPS in the cloud, to a repository stored on your local computer.

Running a local repository server

On the internal host, download and run the latest release of REST-server to act as the repository server. In this example the --no-auth option is used to not require authentication when connecting to it:

rest-server --listen localhost:8000 --path /path/to/repo --no-auth

Note

The --listen localhost:8000 option ensures that REST-server is only accessible from the internal host.

Creating a reverse SSH tunnel

On the repository server (the internal host), use ssh -R to create a “reverse” SSH tunnel that listens for connections on the remote side and forwards these back through the tunnel to the local side:

ssh -R 8000:localhost:8000 user@server

Note

In this example, localhost refers to the local repository server, and server refers to the remote system where restic is to be run.

Running restic on the remote system

Now that the SSH session and tunnel is established, run restic on the remote system as usual, but with a repository URL that targets that system’s side of the SSH tunnel, in this example localhost:8000.

This will make restic on the remote system connect to port 8000 on its localhost, where the SSH tunnel is listening, after which the connection is forwarded through the tunnel and finally reaches localhost:8000 on the local side where REST-server is listening and acting as the repository server.

To initialize the repository:

restic -r rest:http://localhost:8000/ init

You can then use standard restic commands such as backup, snapshots and restore with the same repository URL and other options as usual.

Tip

The tunnel will be active for the duration of the SSH session.

Alternative: Running a local repository server using rclone

The program rclone can alternatively be used to run a local repository server instead of using REST-server.

rclone serve restic --addr localhost:8000 /path/to/repo
